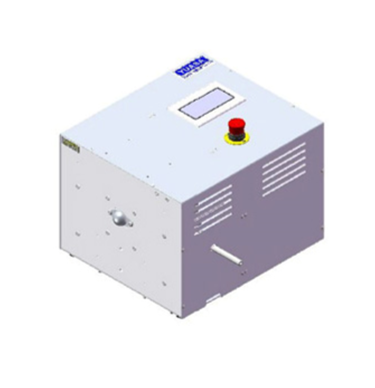

Desktop Motor Drive Unit HP
Rotary & Linear Movements
Suitable for most small / ambient testing
-
Rotary Output, Linear Output
Touch Panel Settings
Start, Stop, Jog ("-" "0" "+")
Cycle Counter
Show Position degrees
Set +SP, -SP
Set Speed (r/min)
Set High / Low Jog Speed
Set Stop Position ("-" "0" "+")
-
Stepping Motor
Acceleration: 360 rad/s2 maximum
Reciprocating Angle: 7 ~ ±270 deg.
Positioning Accuracy: 0.25 deg.
Permissible Torque: 1.8 Nm
Permissible Moment of Intertia: 2 x 10-3 kg/m2
Output Shaft Static Rated Moment: 1.5 Nm
Cabinet Dimensions WDH (mm): (344x296x296)
Cabinet Dimensions WDH (in): (13.54x11.65x11.65)
Weight: 15.2 kg (33.5 lb)
Benchtop Motor Drive Unit DR
Rotary Movement
Linear Movement via optional Linear Converter Unit
Suitable for Medium / High power testing(incl. hostile & extreme climate integrated testing)
Most powerful DR/5 available as Custom option (3 x torque & braking of DR/4 available suitable for multi camera assessments in hostile & extreme climate integrated testing)
-
Rotary Output, Future - Linear Output Adapter
Touch Panel Settings
Start, Stop, Jog ("-" "0" "+")
Cycle Counter
Show Position degrees
Set +SP, -SP
Set Speed (deg/s)
Set High / Low Jog Speed
Set Stop Position ("-" "0" "+")
Additional Touch Panel Settings
Accelerate - Triangle or Trapezoid Mode
Motion Type - Reciprocation or Rotation
Operation Mode - Normal or Pitch
Set Pitch Number - For Multiple Stops
Go to Specified Degrees Position
Total Cycle Counter
Show Speed (≈Cycle/min)
-
Stepping Motor
Rotation Speed: 1 ~ 1200 deg/sec
Reciprocating Angle: 7 ~ ±3600 deg.
Positioning Accuracy: 0.05 deg.
Permissible Torque: 6.5 Nm
Permissible Moment of Intertia: 2 x 10-3 kg/m2
Output Shaft Static Rated Moment: 1.5 Nm
Cabinet Dimensions: WDH (mm) (600x300x255)
Cabinet Dimensions WDH (in): (19.69x11.81x10.04)
Weight 23 kg (50.7 lb)
